WR-G315

Overview

The WiNRADiO WR-G315 is a software-defined high-performance HF receiver (9 kHz to 1800 MHz, optionally extendable to 8599 MHz using an optional Antenna Multiplexer and Frequency Extender) available as external version with a USB or internal with PCI interface.

This receiver is intended for government, military, security, surveillance, broadcast monitoring, industrial and demanding consumer applications.

The receiver offers an unparalleled flexibility given its SDR architecture, respectable dynamic range, and high sensitivity. Many useful features complement the receiver, making it capable of filling not only the role of a monitoring receiver but also that of a measuring receiver, such as the calibrated S-meter showing the received signal levels in dBm, ┬ÁV or S-units, down to the 140 dBm noise floor, several spectrum analyzers, and many other features not usually found on receivers of this price.

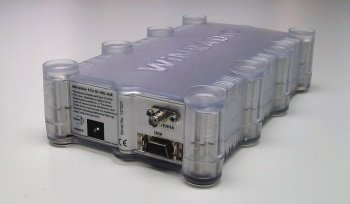

USB Version

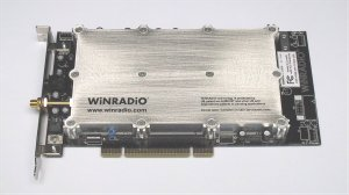

PCI version

Hardware

The receiver connects to an IBM-compatible PC via the USB port or fitted on PCI slot. Several receivers can be controlled by a single PC to form a multi-channel HF receiver system.

The receiver has its own on-board DSP, and does not rely on the PC sound card for the signal input; the digitization is done in the receiver itself, using a high-performance analog-to-digital converter. As the DSP performs the final stage IF filtering and all demodulation, this receiver is entirely software-defined, which means that additional demodulation or decoding modes can be easily added by a mere software change. (For example, an optional DRM decoder/demodulator is also available.)

Easily installed to any modern computer with the USB interface, or PCI slot this receiver represents an excellent mobile solution for HF listening and monitoring.

Software

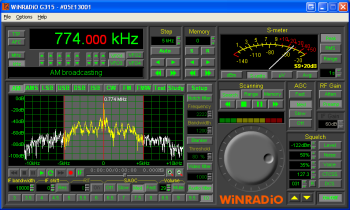

The WR-G315 software contains numerous advanced features, many tuning and scanning options, virtually unlimited memories and a rich on-line help facility.


There are numerous demodulation modes, continuously variable IF bandwidth 1 Hz to 15 kHz (in 1 Hz increments), a 20 kHz wide real-time spectrum analyzer with 16 Hz resolution, noise blanker and notch filter. There is also an integrated recorder, making it possible to instantly record and playback the received signal. Apart from audio recording and playback, the receiver can also record an entire 20 kHz wide IF spectrum, making it possible to thoroughly analyze the received signal, and "re-receive" the same signal again and again with different IF filter bandwidths, notch filter, noise blanking or demodulator settings, to arrive at the best possible reception of weak or interference-prone transmissions.

In addition to the real-time narrow-band spectrum analyzer, there is also a wide-band spectrum analyzer which contains additional professional instrumentation facilities: the ability to display minimum and maximum spectrum sweeps, search for peaks, average spectra, save and print spectra, marker mode, etc.

Another useful feature, previously unavailable with receivers of this price class, is a test and measurement facility, performing measurements on the received signal including frequency accuracy, amplitude modulation depth, frequency deviation, THD (total harmonic distortion) and SINAD. An audio spectrum analyzer is also included, making it possible to observe the demodulated spectrum in real-time with a resolution of 5 Hz.

The unique research and education function makes it possible to explore interactive block diagrams of the software-defined demodulator, for each demodulation mode, and observe demodulation taking place on real-time signals using two spectrum analyzers and a vector voltmeter.


What's included?

The standard WR-G315 package includes:

  • WR-G315 receiver
  • Application software
  • Comprehensive user's manual
  • Low-noise linear power supply (for E version only)
  • Start-up antenna
  • USB cable  (for E version only)
  • BNC-to-SMA adapter


WR-G315i Professional Wide-Band Receiver - for price please call

Options for WiNRADiO G315i Professional Wide-Band Receiver

  • /XR External Reference Oscillator Option 208.05
  • /RO Reference Oscillator Output Option 156.95
  • /IF0 Intermediate Frequency (IF0) Output Option 109.65 MHz 262.80
  • /IF1 Intermediate Frequency (IF1) Output Option 10.7 MHz 383.25
    This option includes the required Wide-FM option also.
  • /IF2 Intermediate Frequency (IF2) Output Option 16 kHz 208.05
  • /WFM Wide-FM Option for reception of FM broadcasts (mono only) 125.56

Options can be combined, for example G315i/XR/IF1/WFM is possible.
However, only one of the IF0, IF1 and IF2 options can be installed. Installation needs to be done in the factory.

WR-G315e Professional Wide-Band Receiver  - for price please call

Options for WiNRADiO G315e Professional Wide-Band Receiver

  • /WFM Wide-FM Option for reception of FM broadcasts (mono only) 125.56
    Installation of this option needs to be done in the factory.

WR-G315 Specifications

Receiver type DSP-based SDR with DDS-based dual-conversion superheterodyne front end
Frequency range 9 kHz - 1800 MHz
(3500 or 8599 MHz with optional AMFE unit)
(except cellular radiotelephone frequencies where required by law)
Tuning resolution 1 Hz
Mode AM, AMS, LSB, USB, DSB, ISB, CW, FM
(wide-FM with optional WFM demodulator)
Image Rejection
1.8-150 MHz:  60 dB typ.
150-1800 MHz:  50 dB typ.
IP3 0 dBm @ 20kHz
Spurious-free dynamic range 90 dB
MDS -135 dBm
Phase noise -148 dBc/Hz @ 100 kHz
Internal spurious Typically less than equivalent antenna input of -105 dBm
RSSI accuracy 2 dB
RSSI sensitivity -137 dBm
Bandwidth 50 - 15000 Hz (adjustable in 1 Hz steps)
230 kHz (WFM option only)
Scanning speed 50 channels/s
Sensitivity

(AM/SSB/CW 10dB S/N)

(FM/WFM 12dB SINAD)

Mode 0.15‑500 MHz 500‑1800 MHz
AM, AMS (30% modulation) ‑108dBm
(0.89µV)
‑104dBm
(1.4µV)
AM, AMS (80% modulation) ‑116dBm
(0.35µV)
‑112dBm
(0.56µV)
LSB, USB, ISB, DSB ‑119dBm
(0.25µV)
‑115dBm
(0.40µV)
CW ‑126dBm
(0.11µV)
‑122dBm
(0.18µV)
FM ‑113dBm
(0.50µV)
‑109dBm
(0.80µV)
WFM (WFM option only) ‑104dBm
(1.40µV)
‑102dBm
(1.78µV)
Note:

Below 150 kHz, the sensitivity gradually drops.
Typical figures (CW) are:

100 kHz    -124 dBm
50 kHz    -118 dBm
25 kHz    -116 dBm
10 kHz    -110 dBm
Intermediate frequencies IF1: 109.65 MHz
IF2: 16 kHz
Roofing filter 2 x 4-pole 20 kHz crystal filter
Tuning accuracy 1 ppm (25°C ±2°C)
Frequency stability 0.5 ppm (0 to 60° C)
Antenna input 50 ohm (SMA connector)
Maximum input level +18 dBm

Specifications are subject to change without notice due to continuous product development and improvement.
