Technical informations - Systems

TWINPLEX CCIR 476
Si tratta di un sistema ARQ Simplex sincrono FDM (4 frequenze) a due canali di tre caratteri con 7 bit per carattere, che utilizza l'alfabeto CCIR 476. Un ciclo completo ha durata di 450 msec. suddivisi in 210 msec di trasmissione e 240 msec. di ricezione. Decodifiche WORD-, BIT-, CHARACTER-, e NOT- INTERLEAVED sono selezionabili con sei diversi modi di decodificare i due canali, identificati con F7B-1, F7B-2,..... F7B-6. La stazione che trasmette può anche programmare individualmente gli shift audio utilizzati  I quattro tipi di interlacciamento WORD-, BIT-, CHARACTER-, e NOT- INTERLEAVED sono organizzati come segue:
   WORD-  ABC  ABC  DEF  DEF  GHI  GHI JKL  JKL ...
   BIT-   A1  A1  A2  A2  A3  A3  A4  A4  A5  A5  A6  A6  A7  A7 ...
   CHARACTER-  A  A  B  B  C  C  D  D  E  E  F  F ...
   NOT-  ABC DEF GHI JKL MNO PQR ...
Nello schema sopra riportato le lettere si riferiscono ai caratteri inviati; ad esempio in Sitor normale sarà : ABC DEF GHI JKL, e i numeri si riferiscono ai bit delle lettere, quindi se la lettera A viene inviata da un Sitor normale sarà A1, A2, A3, A4, A5, A6, A7, cioè i 7 bit vengono inviati uno dopo l'altro. La scrittura semplice e quella in grassetto differenziano i due canali. Le quattro frequenze che sono trasmesse da f1 a f4, possono essere inviate in sei modi fondamentalmente diversi e questo giustifica i sei diversi modi da F7B-1 a F7B-6.


TWINPLEX CCIR 476
A FDM (4 frequency) 2 channel simplex synchronous ARQ system using the CCIR 476 alphabet. 2 channels of 3 characters are sent, made up of 7 bits per character. A complete cycle has a duration of 450 msec and consists of 210 msec transmit, 240 msec receive. WORD-, BIT-, CHARACTER or NOT-INTERLEAVED decode is selectable along with 6 different ways of decoding the 2 'channels' called F7B-1 to F7B-6 respectively. The sending station can also individually program the actual audio shifts used. The 4 types of Interleave are arranged as follows  (in the following chart, letters refer to the characters being sent, e.g. normal SITOR would be ABC DEF GHI JKL, and numbers refer to the bits of the letter, so if the letter A was sent by normal SITOR it would be A1..A7 i.e. all 7 bits are sent one after the other) Normal case and Bold Italics differentiate between the two channels.

WORD- ABC ABC DEF DEF GHI GHI JKL
BIT- A1 A1 A2 A2 A3 A3 A4 A4 A5 A5 A6 A6 A7
A7
CHAR- A A B B C C D D E E F
F
NOT- ABC DEF GHI JKL MNO PQR

The four frequencies F1 to F4 that are transmitted can be sent in 6 basically different ways and this leads to the 6 different modes F7B1 to F7B6.

F7B-1 ... F7B-6 Comb.

           ch1    ch2
  --------------------
   F7B-1  BBYY   BYBY
   F7B-2  BBYY   BYYB
   F7B-3  BYBY   BBYY
   F7B-4  BYBY   BYYB
   F7B-5  BYYB   BBYY
   F7B-6  BYYB   BYBY






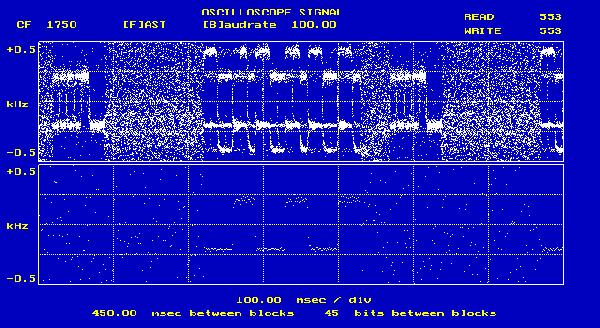

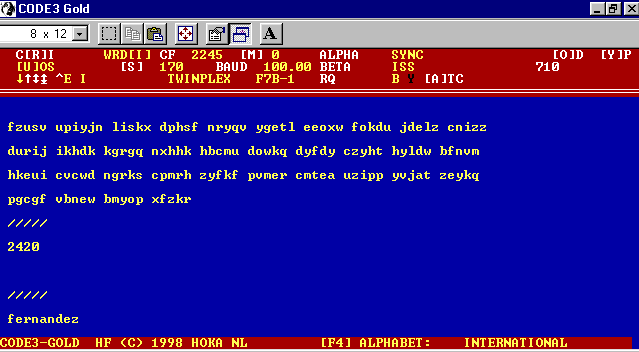

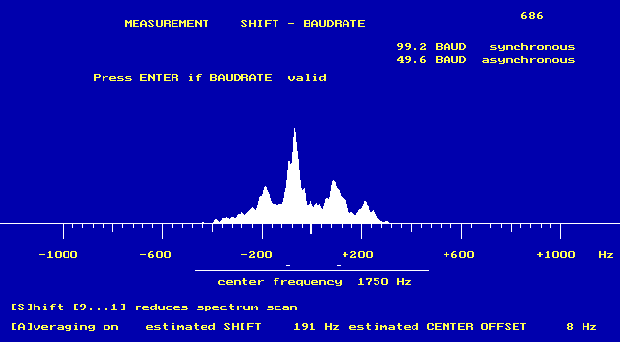

Twinplex Twinplex
